Raspberry PI Controlling Power through GPIO (no wifi needed)

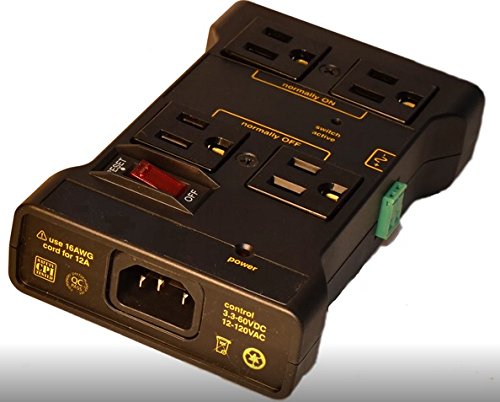

51ukbi62btml

Digital Logger’s IOT Logic Outlets

In my previous two articles – we show two ways the Raspberry Pi can control power through Wifi:

Raspberry PI for controlling TP-Link POWER

Raspberry PI for Controlling Wemo Power

These assume wifi-enabled outlets, which are great, but there are some cases where you really want the Raspberry PI to control the power without requiring internet.  For me, that came when I decided my router occasionally needs a reboot. But… if I reboot my router, I wont have internet!  So I could power the outlet back up. 😉

Another case might be when you are having a Paper Airplane Bonanza and you don’t have Wifi as an option for controlling Fan-Based airplane traps!

So, here you want you’ll want either the one pictured above or this one:

41qw5aua6-l

The Power Switch Tail II

These both safely control 110V outlets used for all household appliances through Logic Level voltages.  “Logic level voltages” just means, it is something that can be controlled with a pin from a device like an Arduino or Raspberry PI.  Imagine the power you have!

A little code like this (Node code is a little further down.):

import RPi.GPIO as GPIO
import time
import signal
import sys

# Gracefully handle reseting the GPIO state.
def signal_handler(signal, frame):
  print('You pressed Ctrl+C!')
  GPIO.cleanup() # cleanup all GPIO
  sys.exit(0)

signal.signal(signal.SIGINT, signal_handler)

lampPin = 16 # The pin connected to the outlet controller.

GPIO.setmode(GPIO.BCM) # Broadcom pin-numbering scheme GPIO.setup(lampPin, GPIO.OUT) # Lamp pin set as output
GPIO.setup(lampPin, GPIO.OUT) # LED pin set as output
GPIO.output(lampPin, GPIO.LOW)

while True:
 GPIO.output(lampPin, GPIO.HIGH)
 time.sleep(0.075)
 GPIO.output(lampPin, GPIO.LOW)
 time.sleep(0.075)

Node Code… make sure you install rpi-gpio:

npm install --save rpi-gpio
var gpio = require('rpi-gpio');
gpio.setMode(gpio.MODE_BCM);

var lampPin = 16;
function pinBlink() {
 gpio.write(lampPin, false, (err) => {
   if (err) {
     console.log("Error in setting gpio pin.",err);
     return;
   }

   setTimeout(() => {
     gpio.write(lampPin, true, (err) => {
       if (err) {
         console.log("Error in setting gpio pin.",err);
         return;
       }
     });
   }, 1000);
 });
}

gpio.setup(lampPin, gpio.DIR_OUT, () => {
 setInterval(pinBlink, 2000);
});

Can turn on fans… lamps… anything that normally plugs into a wall outlet!  In this code we make it blink!

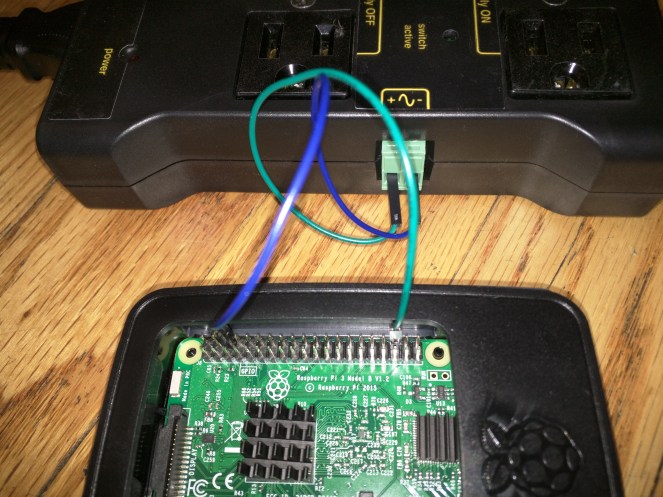

An image of the setup is below, but its pretty simple.  These make it easy:

518yj3qvx5l

But any jumper wires you can strip on your own will work too.  You just need to get one routed from one of your pi’s ground pins, to the negative or ground on the tail or digital logger.

Then get pin 16 hooked to V+ or +IN on these devices.

img_20170109_201011

Now, mix this code with an IR remote and you can reset your Wifi with a remote control!  For clues – check out this article:

Tying it all together! Wand > LIRC > Socket > Forever > Outlet
